Chemical process

Lore & Background

The term 'chemical process' has two practical definitions: one referring to any change in chemical identity, and another referring to industrial-scale methods used in manufacturing. Neither definition is exact, and chemists and scientists use the term only in a general sense or in the engineering sense. The engineering type of chemical process is used extensively and may involve multiple steps called unit operations, each occurring in individual vessels or sections of a plant called units. Chemical processes like distillation and crystallization date back to alchemy in Alexandria, Egypt.

Reader's Guide

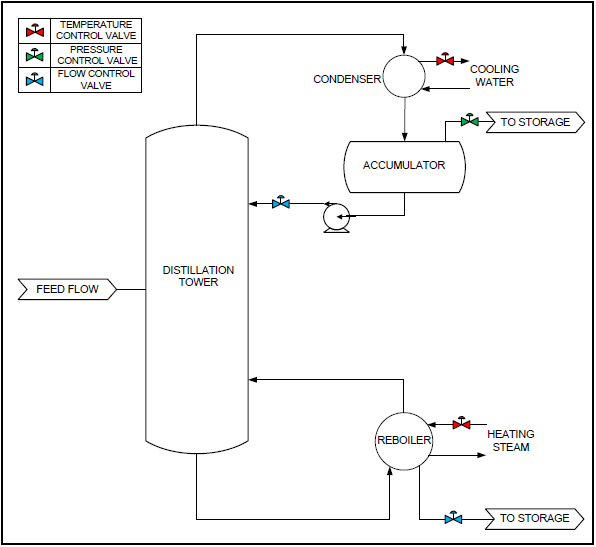

Chemical processes are fundamental to the chemical industry and related fields such as oil refining, natural gas processing, polymer and pharmaceutical manufacturing, food processing, and water and wastewater treatment. They can be illustrated as block flow diagrams or process flow diagrams, with blocks representing units and lines representing streams. For a given amount of feed or product, expected material amounts can be determined from empirical data and material balance calculations, and these amounts can be scaled up or down for different plants. Unit processing, which follows chemical laws, includes processes such as fractionation, distillation, filtration, oxidation, reduction, hydrogenation, and polymerization, among others.

Did You Know?

• Chemical processes like distillation and crystallization go back to alchemy in Alexandria, Egypt.
• The term 'chemical process' has two practical definitions, neither of which is exact.
• Chemical processes can be illustrated as block flow diagrams or process flow diagrams.
• Unit processing in chemical engineering includes processes such as fractionation, distillation, filtration, oxidation, and reduction.

Design Philosophy & Economic Optimization

Chemical reactor design sits at the intersection of multiple engineering disciplines, with the ultimate goal of maximizing net present value for a given reaction. Engineers must balance competing demands: achieving the highest possible yield of the desired product while keeping capital and operating costs as low as possible. Operating expenses span a wide range, from raw material procurement and labor to the energy required for heating, cooling, pressure pumping, and agitation. Even frictional pressure losses within the system factor into the economic calculus. The branch of chemical engineering dedicated to this work—chemical reaction engineering—applies chemical kinetics to industrial-scale systems, translating molecular-level reaction rates into practical vessel geometries and operating conditions. A well-designed reactor ensures the reaction proceeds with maximum efficiency toward the target output, making the economic case for the entire process viable.

The Three Idealized Models

Chemical engineers rely on three foundational idealized models to estimate the key process variables of any reactor: the batch reactor model, the continuous stirred-tank reactor (CSTR) model, and the plug flow reactor (PFR) model. The batch model describes a vessel where materials are loaded, the reaction proceeds over time, and no steady state is ever reached. The CSTR model assumes perfect homogeneity throughout the tank, meaning the reaction proceeds at the rate corresponding to the final output concentration. The PFR model, by contrast, assumes no axial mixing, so the reaction rate changes along the length of the tube as reagent concentrations decrease and product concentrations rise. In practice, most real-world reactors behave as some combination of these three archetypes. Key variables tracked across all models include residence time, volume, temperature, pressure, species concentrations, and heat transfer coefficients.

Thermal Management & Reactor Configuration

The thermal character of a reaction fundamentally shapes reactor architecture. Exothermic reactions release heat, while endothermic reactions absorb it, and each demands a different engineering response. A tank reactor might employ a cooling or heating jacket, or coils wrapped around the vessel wall, to manage temperature. Tubular reactors, when handling strongly exothermic chemistry, can be designed to function like heat exchangers; for strongly endothermic reactions, they may be configured like furnaces. Beyond simple tanks and tubes, reactors take specialized forms: a tubular reactor can house a packed bed of solid catalyst particles or pellets through which liquid or gas reactants are pumped. A fluidized bed reactor represents another configuration. The loop reactor offers a hybrid approach—physically resembling a tubular design but operating with CSTR-like mixing, circulating the reaction mixture through a jacketed tube loop while maintaining continuous feed and product withdrawal.

Operational States & Practical Applications

The distinction between steady-state and transient operation is central to reactor behavior. Continuous-process reactors are typically run at steady state, where inflow equals outflow and process variables remain constant. Batch reactors, by necessity, operate in a transient state: key variables shift with time as the reaction progresses, and precise control of temperature, pressure, and volume becomes essential. When any reactor is first started or restarted after shutdown, it passes through a transient period before reaching steady conditions. In CSTR design, the space time—calculated by dividing tank volume by average volumetric flow rate—determines how long fluid resides in the vessel. Operating multiple CSTRs in series is often economically advantageous, allowing the first unit to handle higher reagent concentrations at faster reaction rates while varying vessel sizes to minimize total capital investment. Batch reactors find their niche in small-scale production and biological processes such as brewing, pulping, and enzyme production.
